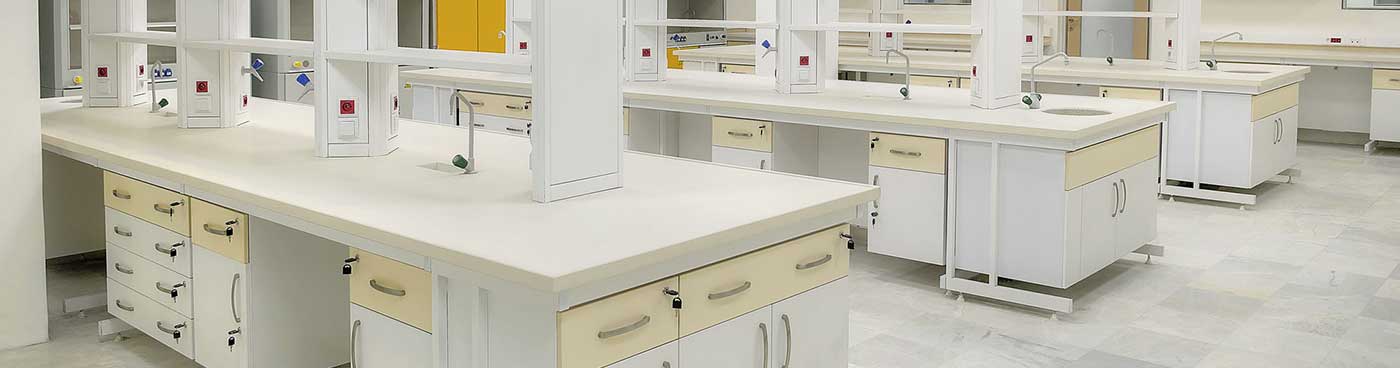

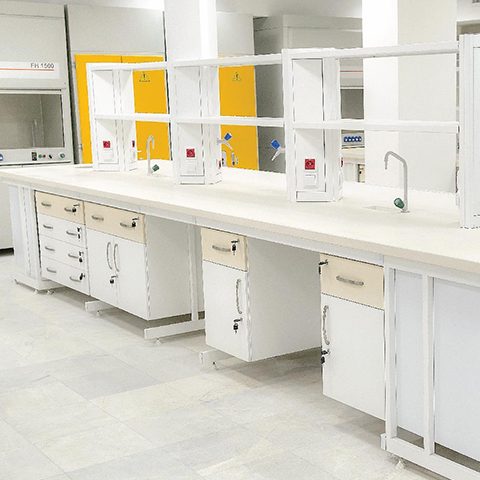

benching of the middle table

Middle table structure



• The main structure of heavy profile mm2 (preferably Saveh or Jahan brand)
• C-shaped base connection system and bolts of 60 * 30 profile (as shown below)
• Coated with first-class electrostatic powder paint
• With initial preparation by acid washing operation
• With an adjustable Teflon base





The material of the middle tabletop



Anti-acid ceramics in 80 * 80 dimensions (with Eagle or Thunder brand in China)

Middle table benching



• Made of 16 mm PVC sheet in two layers with a final diameter of 32 mm



Middle table glue



• Use elastic contact adhesive on the ceramic joints of German Bostik between
• the surface plate and the substructure and Otto shimi s69 German anti-acid silicone on the sink and cup sink.

Middle table cornice



• Made of the ceramic surface to a height of 5cm

The edges of the tables of the middle table



• To prevent liquids from spilling the embossed edge of the first-class PVC



Middle table unit



• All units are made of Arta 16mm MDF brand (complete body, shelves, and drawers’ shelf)
• The type of units should generally be one-door and one-drawer, and according to the needs of three-drawer and two-door units, one drawer should also be provided.
• How to deploy the units should be considered as one between one foot and one unit.
• The connection system is secret (elite system).

Middle table lacings



• The door hinges are 180-degree restraint with excellent quality and guaranteed.

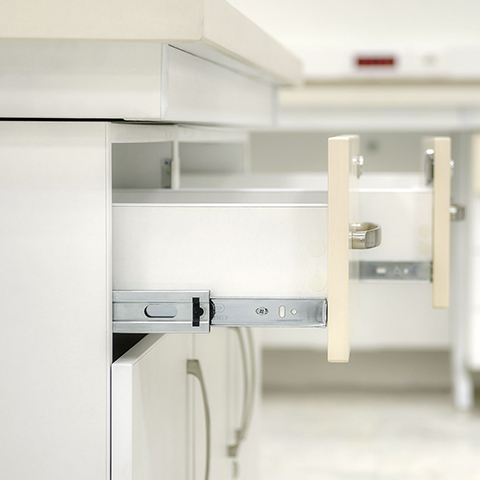

• Ball drawer rails, three arms to withstand heavyweight with excellent quality and guaranteed.

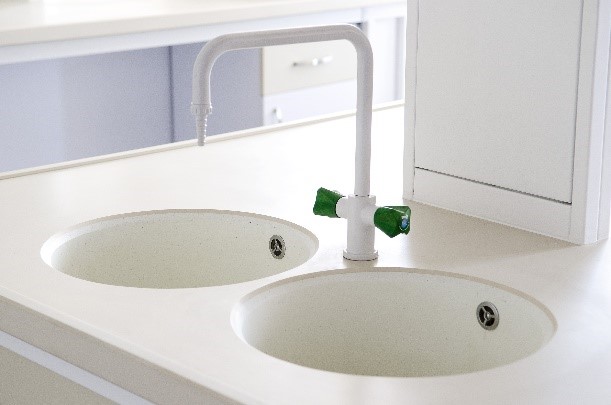

Sink and Cup Sink of Middle Table



• Sinks and cup sinks are made of anti-acid polypropylene.



Middle table faucets



• Consider TOF brands from Italy or Carlos Arboles from Spain.

For more information and expert advice on laboratory benching, you can contact our colleagues at Doris.
